Schneider Electric

NSYTRV62PE

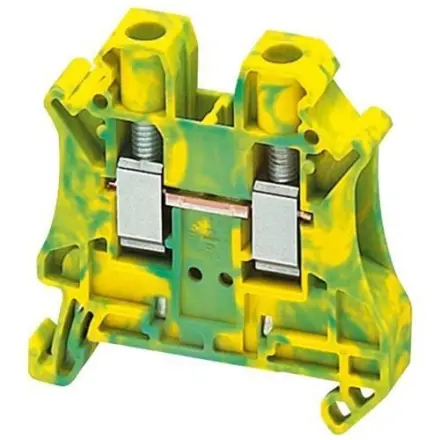

NSYTRV62PE Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYTRV62PE Schneider Electric

NSYTRV62PE Schneider Electric - SCREW TERMINAL, PROTECTIVE EARTH, 2 POINTS, 6MM², GREEN-YELLOW

Extended Description for NSYTRV62PE Schneider Electric

NSYTRV62PE Schneider Electric - SCREW TERMINAL, PROTECTIVE EARTH, 2 POINTS, 6MM², GREEN-YELLOW

Free Delivery to UK Mainland on orders over £25

Main

Range Linergy
Product name Linergy TR
product or component type Terminal block
Device short name TRV
Terminal block type Protective earth
Terminal block level 1
mounting mode Clip-on
Nominal cross section 6 mm²
Length 47.7 mm
Colour Green-yellow
Quantity per set Set of 50

Complementary

Width 8.2 mm
Height 47.5 mm
Connections - terminals 1 x screw terminal: upstream,1 x screw terminal: downstream
number of connections 2
Connection position Sideways
Number of measurement input 2
Cable cross section 0.2…10 mm², solid,0.2…10 mm², flexible without cable end,0.2…6 mm², flexible with cable end
Tightening torque 1.5…1.8 N.m
Wire stripping length 10 mm
Tool type Connection: screwdriver,Disconnection: screwdriver
Material Polyamide 6/6: insulating case
Dielectric loss 0.01 at 1 MHz conforming to IEC 60250,0.01 at 1 MHz conforming to VDE 0303-T4
Dielectric constant 3.7 at 1 MHz
Resistivity 10000 MΩ.m conforming to IEC 60093,10000 MΩ.m conforming to VDE 0303-T30
Surface resistance 1000 GΩ conforming to IEC 60093,1000 GΩ conforming to VDE 0303-T30
Creep resistance 500 CTI (> 400 kB) conforming to IEC 60093,500 CTI (> 400 kB) conforming to VDE 0303-T30
Flame retardance V0, thickness0.8 mm conforming to UL 94
net weight 22.74 g
Range compatibility PrismaSeT G,PrismaSeT P,PrismaSeT Pack 250,PanelSeT,TeSys,Mureva,PrismaSeT XS
Product compatibility Spacial enclosures

Environment

Product certifications UL,VDE,DNV,CSA,LR,GL
Dielectric strength 1000 V conforming to IEC 60243-1
Ambient air temperature for operation -40…130 °C conforming to IEC 60216-1,-40…130 °C conforming to VDE 0304-T21

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 0.800 cm
Package 1 Width 4.800 cm
Package 1 Length 4.800 cm
Package 1 Weight 22.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 50
Package 2 Height 5.500 cm
Package 2 Width 10.500 cm
Package 2 Length 21.800 cm
Package 2 Weight 1.111 kg
Unit Type of Package 3 S03
Number of Units in Package 3 450
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 10.494 kg

Contractual warranty

Warranty 18 months
